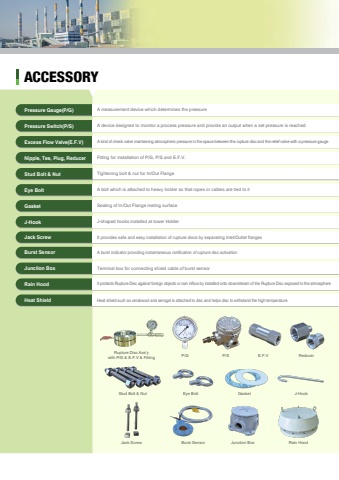

ACCESSORYPressure Gauge(P/G) A measurement device which determines the pressurePressure Switch(P/S) A device designed to monitor a process pressure and provide an output when a set pressure is reachedExcess Flow Valve(E.F.V) A kind of check valve maintaining atmospheric pressure in the space between the rupture disc and the relief valve with a pressure gaugeNipple, Tee, Plug, Reducer Fitting for installation of P/G, P/S and E.F.V.Stud Bolt & Nut Tightening bolt & nut for In/Out FlangeJack Screw It provides safe and easy installation of rupture discs by separating Inlet/Outlet flangesGasket Sealing of In/Out Flange mating surfaceJunction Box Terminal box for connecting shield cable of burst sensorEye Bolt A bolt which is attached to heavy holder so that ropes or cables are tied to itBurst Sensor A burst indicator providing instantaneous notification of rupture disc activationJ-Hook J-shaped hooks installed at lower HolderRain Hood It protects Rupture Disc against foreign objects or rain inflow by installed onto downstream of the Rupture Disc exposed to the atmosphereHeat Shield Heat shield such as cerakwool and aerogel is attached to disc and helps disc to withstand the high temperatureJack Screw Burst Sensor Junction Box Rain HoodStud Bolt & Nut Eye Bolt Gasket J-HookRupture Disc Ass%u2019ywith P/G & E.F.V & Fitting P/G P/S E.F.V Reducer
