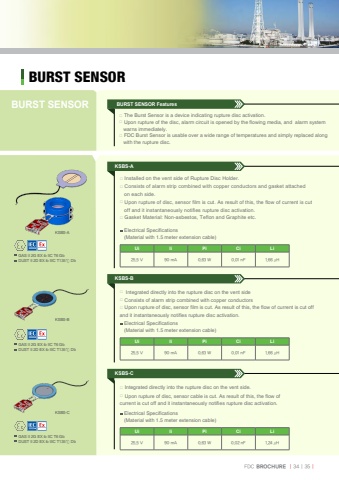

FDC BROCHURE | 34 | 35 |%u25a0 The Burst Sensor is a device indicating rupture disc activation.%u25a0 Upon rupture of the disc, alarm circuit is opened by the flowing media, and alarm system warns immediately.%u25a0 FDC Burst Sensor is usable over a wide range of temperatures and simply replaced along with the rupture disc.BURST SENSOR BURST SENSOR Features BURST SENSOR %u25a0 Installed on the vent side of Rupture Disc Holder.%u25a0 Consists of alarm strip combined with copper conductors and gasket attached on each side.%u25a0 Upon rupture of disc, sensor film is cut. As result of this, the flow of current is cut off and it instantaneously notifies rupture disc activation.%u25a0 Gasket Material: Non-asbestos, Teflon and Graphite etc.%u25a0 Integrated directly into the rupture disc on the vent side %u25a0 Consists of alarm strip combined with copper conductors%u25a0 Upon rupture of disc, sensor film is cut. As result of this, the flow of current is cut off and it instantaneously notifies rupture disc activation.KSBS-A Electrical Specifications (Material with 1.5 meter extension cable)Ui Ii Pi Ci Li25.5 V 90 mA 0.63 W 0.01 nF 1.66 %u03bcHKSBS-B Electrical Specifications (Material with 1.5 meter extension cable)Ui Ii Pi Ci Li25.5 V 90 mA 0.63 W 0.01 nF 1.66 %u03bcH%u25a0 Integrated directly into the rupture disc on the vent side.%u25a0 Upon rupture of disc, sensor cable is cut. As result of this, the flow of current is cut off and it instantaneously notifies rupture disc activation. KSBS-C Electrical Specifications (Material with 1.5 meter extension cable)Ui Ii Pi Ci Li25.5 V 90 mA 0.63 W 0.02 nF 1.24 %u03bcHKSBS-AGAS II 2G EX ib IIC T6 GbDUST II 2D EX ib IIIC T135%u2103 DbKSBS-BGAS II 2G EX ib IIC T6 GbDUST II 2D EX ib IIIC T135%u2103 DbKSBS-CGAS II 2G EX ib IIC T6 GbDUST II 2D EX ib IIIC T135%u2103 Db
