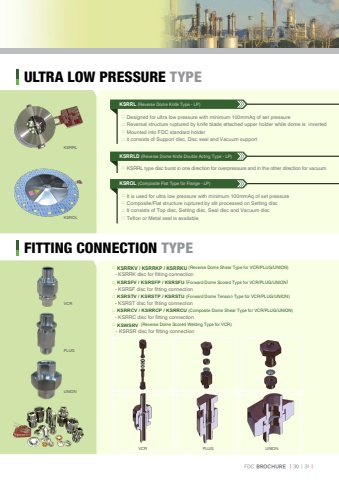

%u25a0 KSRRKV / KSRRKP / KSRRKU (Reverse Dome Shear Type for VCR/PLUG/UNION) - KSRRK disc for fitting connection%u25a0 KSRSFV / KSRSFP / KSRSFU (Forward Dome Scored Type for VCR/PLUG/UNION) - KSRSF disc for fitting connection%u25a0 KSRSTV / KSRSTP / KSRSTU (Forward Dome Tension Type for VCR/PLUG/UNION) - KSRST disc for fitting connection%u25a0 KSRRCV / KSRRCP / KSRRCU (Composite Dome Shear Type for VCR/PLUG/UNION) - KSRRC disc for fitting connection%u25a0 KSWSRV (Reverse Dome Scored Welding Type for VCR) - KSRSR disc for fitting connection%u25a0 Designed for ultra low pressure with minimum 100mmAq of set pressure%u25a0 Reversal structure ruptured by knife blade attached upper holder while dome is inverted %u25a0 Mounted into FDC standard holder%u25a0 it consists of Support disc, Disc seal and Vacuum support%u25a0 KSRRL type disc burst in one direction for overpressure and in the other direction for vacuum%u25a0 It is used for ultra low pressure with minimum 100mmAq of set pressure%u25a0 Composite/Flat structure ruptured by slit processed on Setting disc%u25a0 It consists of Top disc, Setting disc, Seal disc and Vacuum disc%u25a0 Teflon or Metal seal is availableKSRRL (Reverse Dome Knife Type - LP)KSRRLD (Reverse Dome Knife Double Acting Type - LP)KSROL (Composite Flat Type for Flange - LP)ULTRA LOW PRESSURE TYPEFITTING CONNECTION TYPEKSROLKSRRLVCRPLUGPLUG UNIONUNIONVCRFDC BROCHURE | 30 | 31 |
