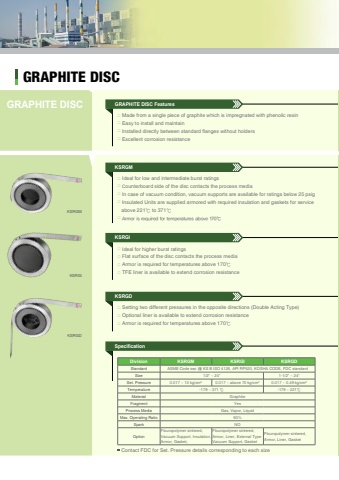

GRAPHITE DISC%u25a0 Made from a single piece of graphite which is impregnated with phenolic resin%u25a0 Easy to install and maintain%u25a0 Installed directly between standard flanges without holders%u25a0 Excellent corrosion resistanceGRAPHITE DISC Features %u25a0 Ideal for low and intermediate burst ratings%u25a0 Counterboard side of the disc contacts the process media%u25a0 In case of vacuum condition, vacuum supports are available for ratings below 25 psig%u25a0 Insulated Units are supplied armored with required insulation and gaskets for service above 221%u2103 to 371%u2103%u25a0 Armor is required for temperatures above 170%u2103KSRGM%u25a0 Ideal for higher burst ratings%u25a0 Flat surface of the disc contacts the process media%u25a0 Armor is required for temperatures above 170%u2103%u25a0 TFE liner is available to extend corrosion resistanceKSRGI%u25a0 Setting two different pressures in the opposite directions (Double Acting Type)%u25a0 Optional liner is available to extend corrosion resistance%u25a0 Armor is required for temperatures above 170%u2103KSRGDSpecificationGRAPHITE DISC Division KSRGM KSRGI KSRGDStandard ASME Code sec %u2167 KS B ISO 4126, API RP520, KOSHA CODE, FDC standardSize 1/2\1-1/2\Set. Pressure 0.017 ~ 10 kg/cm%u00b2 0.017 ~ above 70 kg/cm%u00b2 0.017 ~ 0.49 kg/cm%u00b2Temperature -179 ~ 371 %u2103 -179 ~ 221%u2103Material GraphiteFragment YesProcess Media Gas, Vapor, LiquidMax. Operating Ratio 90%Spark NOOptionFlouropolymer sintered,Vacuum Support, Insulation,Armor, Gasket, Flouropolymer sintered,Armor, Liner, External TypeVacuum Support, GasketFlouropolymer sintered,Armor, Liner, GasketKSRGDContact FDC for Set. Pressure details corresponding to each sizeKSRGMKSRGI
