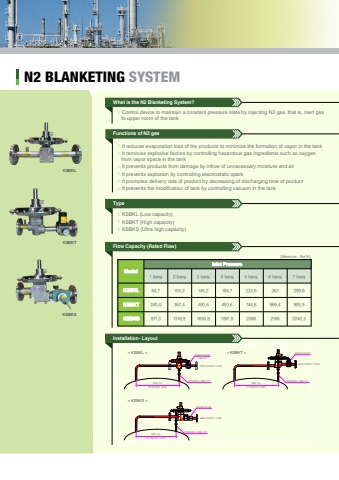

N2 BLANKETING SYSTEMInstallation- LayoutFlow Capacity (Rated Flow)%u25a0 Control device to maintain a constant pressure state by injecting N2 gas, that is, inert gas to upper room of the tankWhat is the N2 Blanketing System?%u25a0 KSBKL (Low capacity)%u25a0 KSBKT (High capacity)%u25a0 KSBKS (Ultra high capacity)Type%u25a0 It reduces evaporation loss of the products to minimize the formation of vapor in the tank%u25a0 It removes explosive factors by controlling hazardous gas ingredients such as oxygen from vapor space in the tank%u25a0 It prevents products from damage by inflow of unnecessary moisture and air%u25a0 It prevents explosion by controlling electrostatic spark%u25a0 It promotes delivery rate of product by decreasing of discharging time of product%u25a0 It prevents the modification of tank by controlling vacuum in the tankFunctions of N2 gasModelKSBKLKSBKTKSBKS1 barg64.7240.6871.32 barg105.2367.41316.93 barg145.2493.61650.94 barg184.7493.61891.85 barg223.6744.620586 barg262869.421687 barg299.8993.92240.3Inlet Pressure[Measure : N%u33a5/h]KSBKLKSBKTKSBKSMIN. 2mRAGULATORSTORAGE TANKSENSING LINE(1/2\N2 SUPPLY LINEMIN. 2mRAGULATORSTORAGE TANKSENSING LINE(1/2\N2 SUPPLY LINEMIN. 2mSTORAGE TANKSENSING LINE(1/2\N2 SUPPLY LINERAGULATOR(Option)< KSBKL >< KSBKS >< KSBKT >
